Zone 2 Air Compressor

Zone II portable screw air compressor for oil and gas field

Zone 2 Air Compressor

Zone II portable screw air compressor for oil and gas field


Solusi air compressor untuk offshore, industri oil & gas.

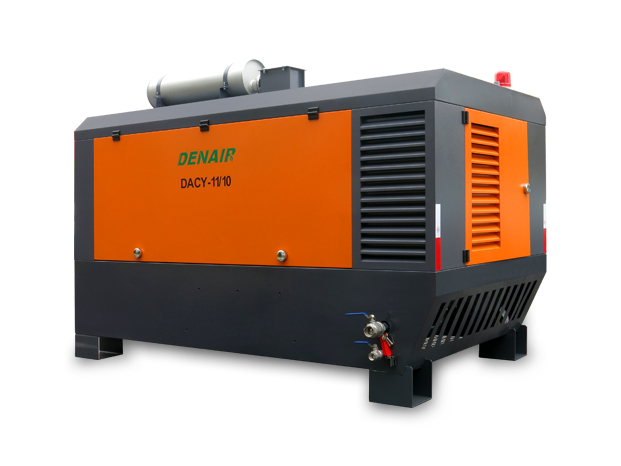

DENAIR ZONE 2 (ZONE II) Portable Screw Air Compressor


Design Features:
- Zone 2 hazardous area operation
- ATEX-certified CLAWYN brand spark arrestor
- ATEX-certified CLAWYN brand engine air inlet shut-off valve with manual emergency stop
- DNV 2.7-1 certification Anti-collision frame with slings
- CUMMINS diesel engine driven
- Emission Tier 3
- Air starter engine
- Built-in aftercooler
- Built-in water separator
- Built-in drip tray
- If the external chimney is on the top, a protective cover is required
- Battery cut-off isolation device (the isolator should be double-stage double-throw)
- Anti-static belt
- Anti-static fan
- With an emergency stop button, the safety control system should stop when the following faults occur (can be the same or better than the value mentioned by the client)
- The control system able connected to the client ESD (emergency shutdown device, all equipment on the customer site must be connected to the ESD)
