PSA NITROGEN GENERATOR

Nitrogen Flow: 5 - 4000 Nm3/h
Nitrogen Purity: 05 - 99,999%
Pressure: 1 - 8 Bar

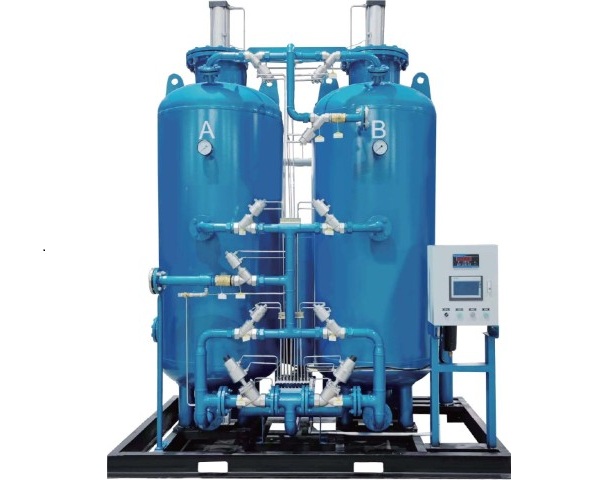

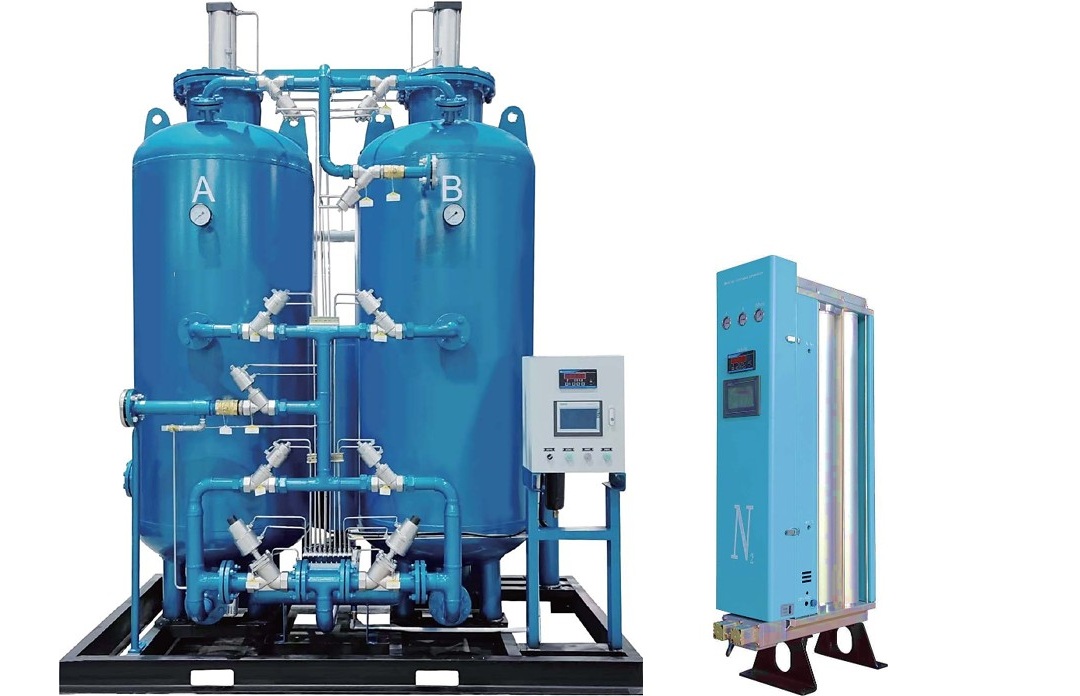

N2 Nitrogen generator

Working Principle

The twin-tower PSA nitrogen generator works based on Pressure Swing Adsorption (PSA) technology. It uses two tanks filled with Carbon Molecular Sieve (CMS). When compressed air enters one tank, the CMS adsorbs oxygen, CO₂, and moisture, allowing nitrogen to pass through as product gas. While one tank is in adsorption mode, the other is regenerated by depressurization, releasing the adsorbed gases to the atmosphere. The system coordinate between the two tanks, ensuring a continuous 24/7 supply of high-purity nitrogen.

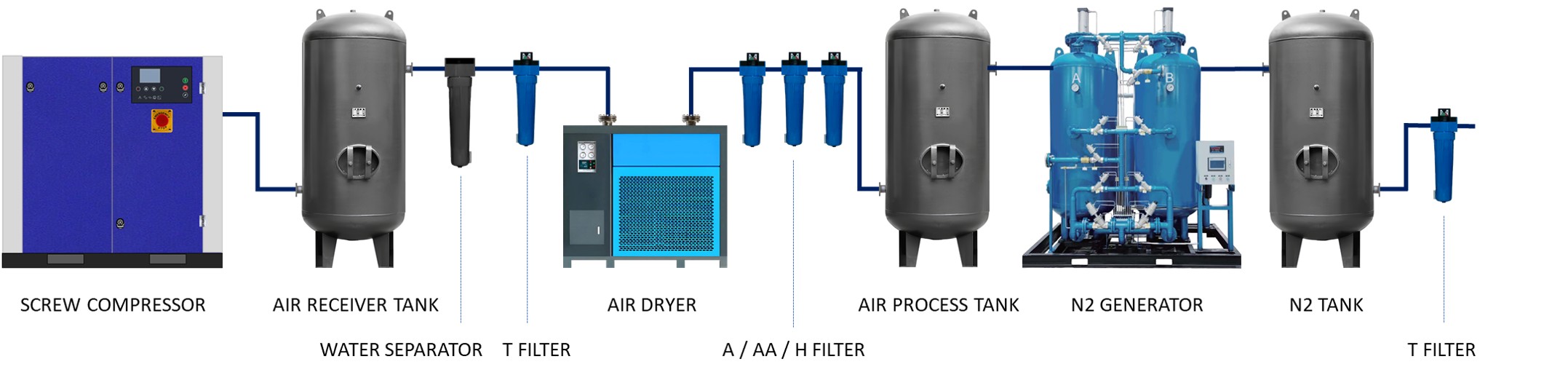

Installation Diagram

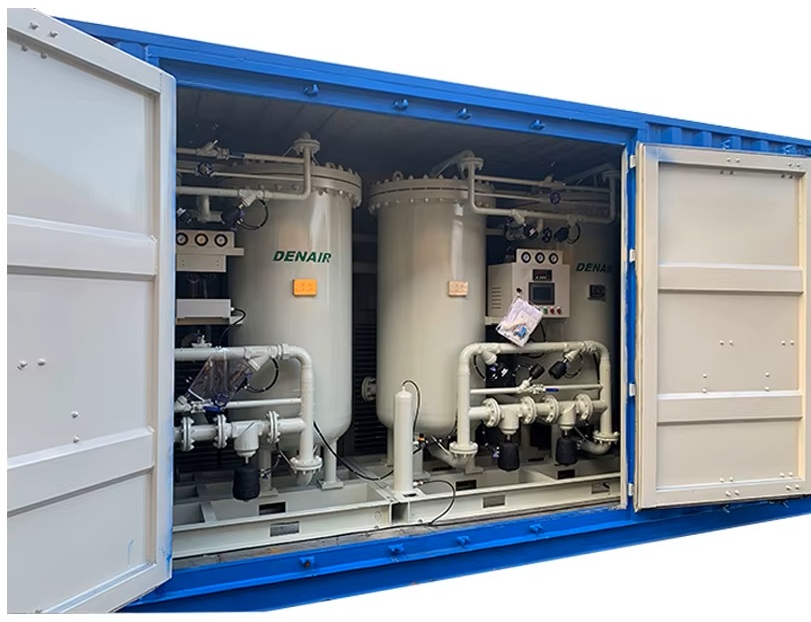

Containerized Nitrogen Plant

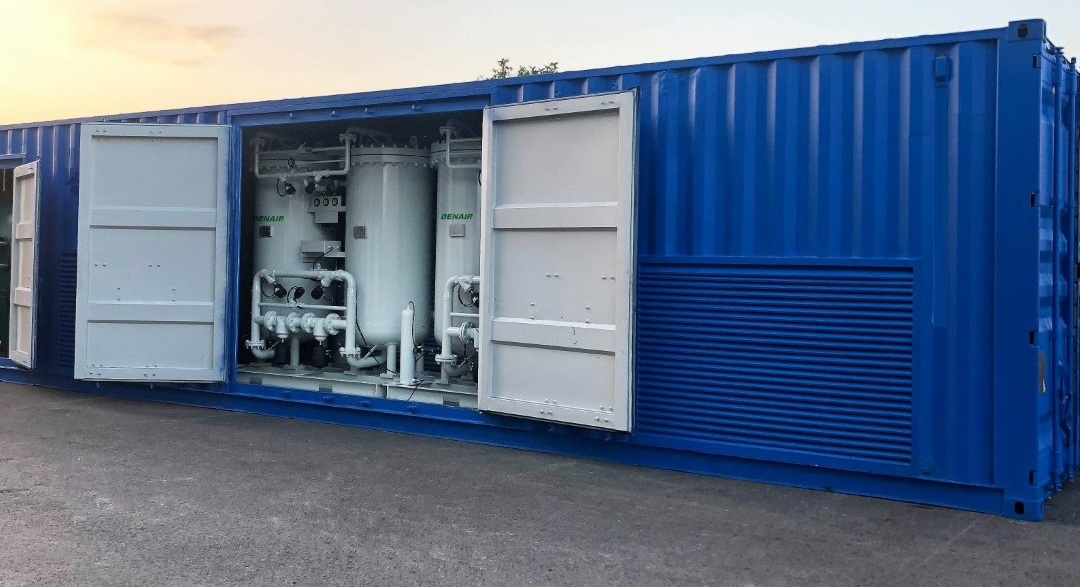

Container nitrogen generator

Advantages

Here are the main advantages of using a PSA Nitrogen Generator:

Cost Saving – No need to purchase or rent cylinders/liquid nitrogen
On-site Supply – Nitrogen is always available, anytime, without depending on external suppliers
Continuous & Stable – 24/7 production with consistent nitrogen purity
Flexible – Purity level can be adjusted as needed (from 95% up to 99.999%)
High Safety – No large storage of high-pressure cylinders required
Fast ROI – Initial investment pays back quickly through operational savings
Eco-friendly – Reduces cylinder transportation and CO₂ emissions
