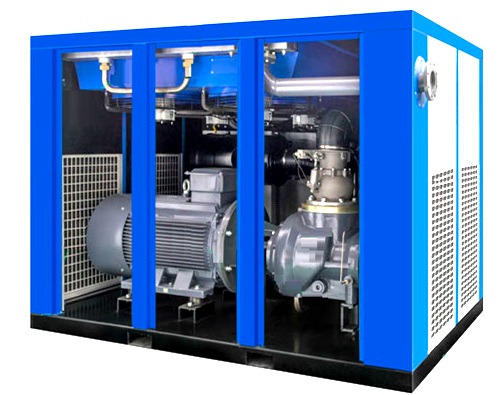

Low Pressure Screw Compressor

Low pressure 3 bar screw air compressor

Low Pressure Screw Compressor

Low pressure 3 bar screw air compressor


3 bar screw air compressor, dengan kapasitas udara lebih besar sampai 80%. Penghematan listrik maksimal
Design Features:
• Saving energy, variable speed drive,
• Premium Efficiency Motor IE3.
• Low pressure , high capacity
• Full stainless steel oil & air pipe
• Genuine MANN Filter Electric parts ABB , Schneider & inverter INVT

Informasi lebih lanjut:



Model Capacity FAD* (m³/min)
at pressure 3 bar
Motor Power Air outlet
diameter
KW HP
DVAL-55-3 16.78 55 75 DN50
DVAL-75-3 23.10 75 100 DN80
DVAL-90-3 25.57 90 120 DN80
DVAL-110-3 31.99 110 150 DN80
DVAL-132-3 35.77 132 175 DN80
DVAL-160-3 39.02 160 215 DN80
DVAL-185-3 43.51 185 250 DN100
DVAL-250-3 63.00 250 350 DN100
